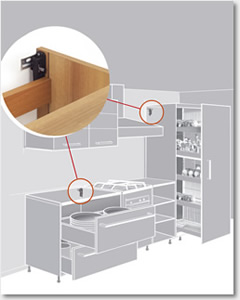

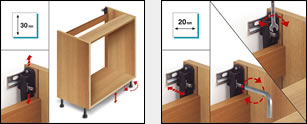

808 is the first anti-tip bracket, preventing the cabinet from tipping over (especially on cabinets with full extension runners or large drawers, also on cabinets which are not very deep...). Used in combination with Camar rails or plates, the 808 series hooks the cabinet onto the wall and releases it simply and quickly, while at the same time giving great stability. It allows a 20mm horizontal adjustment, either from inside the cabinet with a 4mm Allen key, or externally from the top with a Nr. 6 wrench, to avoid drillings. It is suitable for carcase legs with an adjustment range of up to 30mm. The new anti-tip system is in first choice ABS; because, to CAMAR, quality has never been an issue.
|
